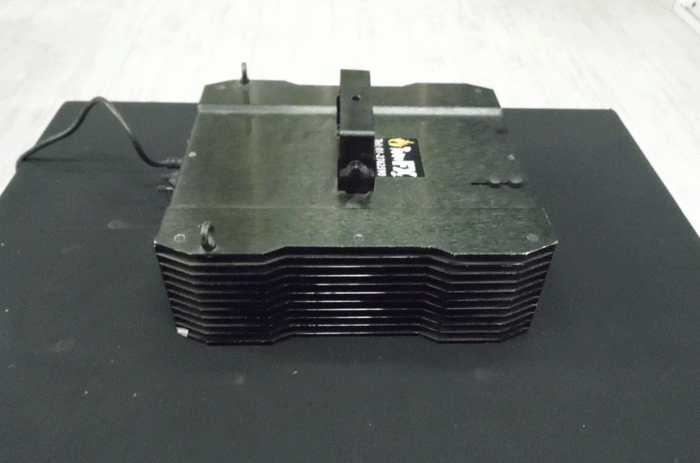

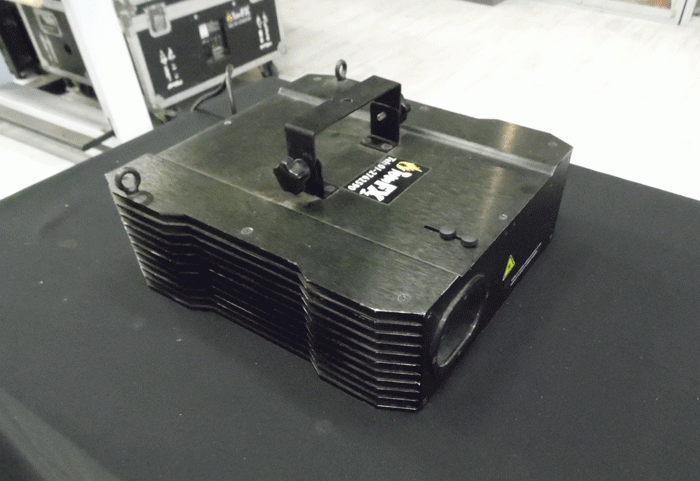

CS-800G Green Laser

The Laserworld CS-800G is a green single color laser system with a total output power of up to 800mW.

  • Total power : 500mW minimum / 800mW maximum
  • Power green : >500mW / 532nm
  • Beam specifications : ca. 3mm / 1mrad
  • Laser source : DPSS laser
  • Laser class : 4
  • Operation modes : auto, music, DMX, ILDA
  • Scanner : Galvo System 30kpps@4°
  • Scan angle : +/- 40° max.
  • Basic patterns : ca. 200 (layers, tunnels, fences, waves, ect.)
  • Accessories : power cable, manual, interlock connector, key
  • Power supply : 85V - 250V AC
  • Power consumption : 50 W
  • Dimensions : Length 315mm, Width 335 mm,
  • Height 110 mm
  • Weight : 7 kg



The green DPSS laser module with a wavelength of 532nm ensures a high visibility and brightness. At the same time the projector has good beam specifications with a beam diameter of 3mm and beam divergence of only 1.0mrad and it offers a galvo system with up to 30kpps as well as a scan angle of up to 40°. This laser system has a ILDA interface for professional computer control. About 200 preset basic patterns, like layers, tunnels, fences, waves etc. can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be altered.


Hire Details

Please contact Team FX regarding the rental of this equipment on +353 (0)1 2762590
